1. ECAs solenoid and trim components

1.1 what is ECAS

ECAs is the abbreviation of electronic controlled air suspension in English, which is translated into electronic controlled air suspension system. It consists of ECAS electronic control unit, solenoid valve, height sensor, airbag and other components. The height adjuster is responsible for detecting the change of the vehicle height. The electronic control unit will receive the input information, judge the current vehicle state, activate the solenoid valve, and several solenoid valves realize the charge and bleed adjustment of each airbag. With the improvement of people's requirements for ride comfort and the development of suspension technology of passenger cars in China, air suspension is widely used in passenger cars.

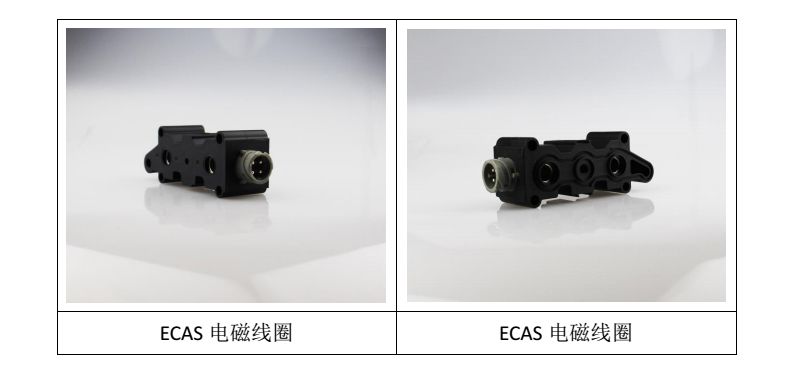

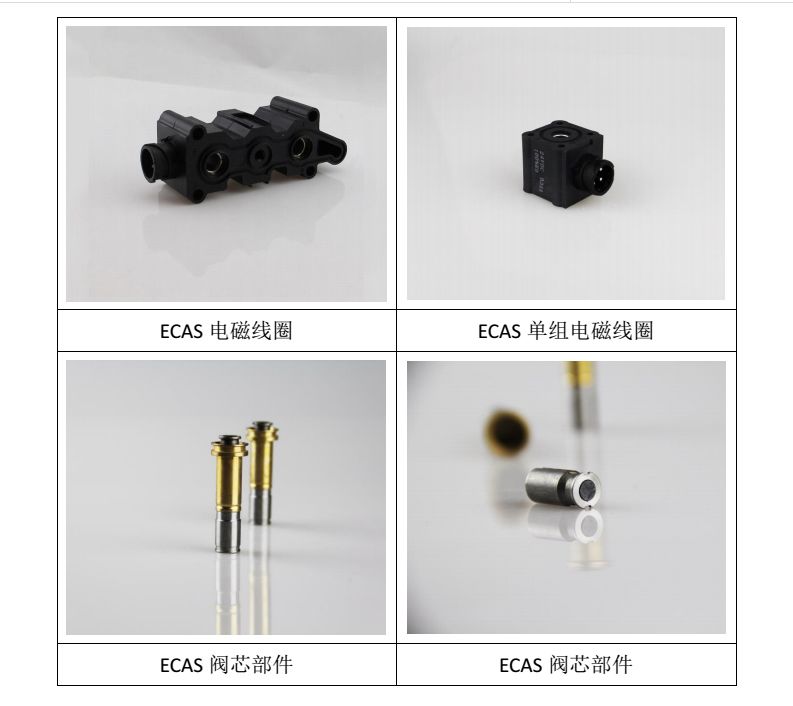

1.2 ECAs solenoid and valve core components of our company

ECAs solenoid valve is a highly integrated and modular design. Depending on the configuration, different numbers of solenoid valve components can be arranged in the general external shell. Therefore, ECAs solenoid has many different changes, and the corresponding valve core components also have many different specifications and combinations. Our company can produce according to customer requirements.

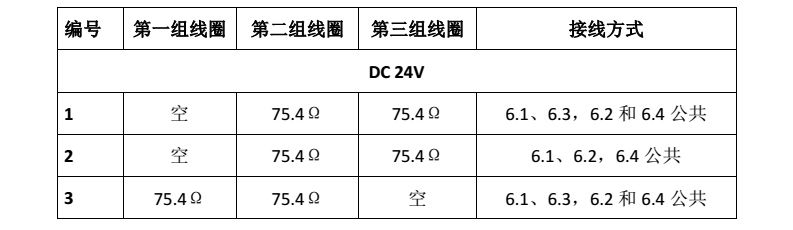

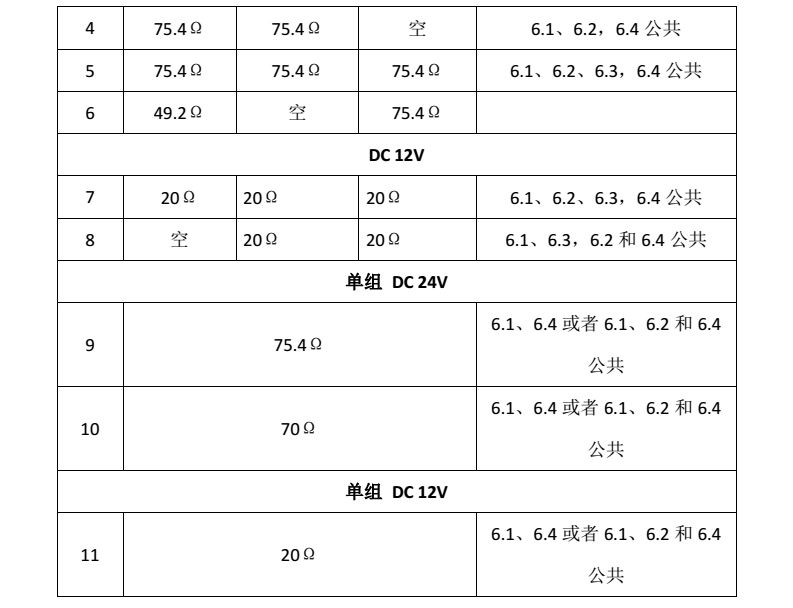

1.3 相关参数

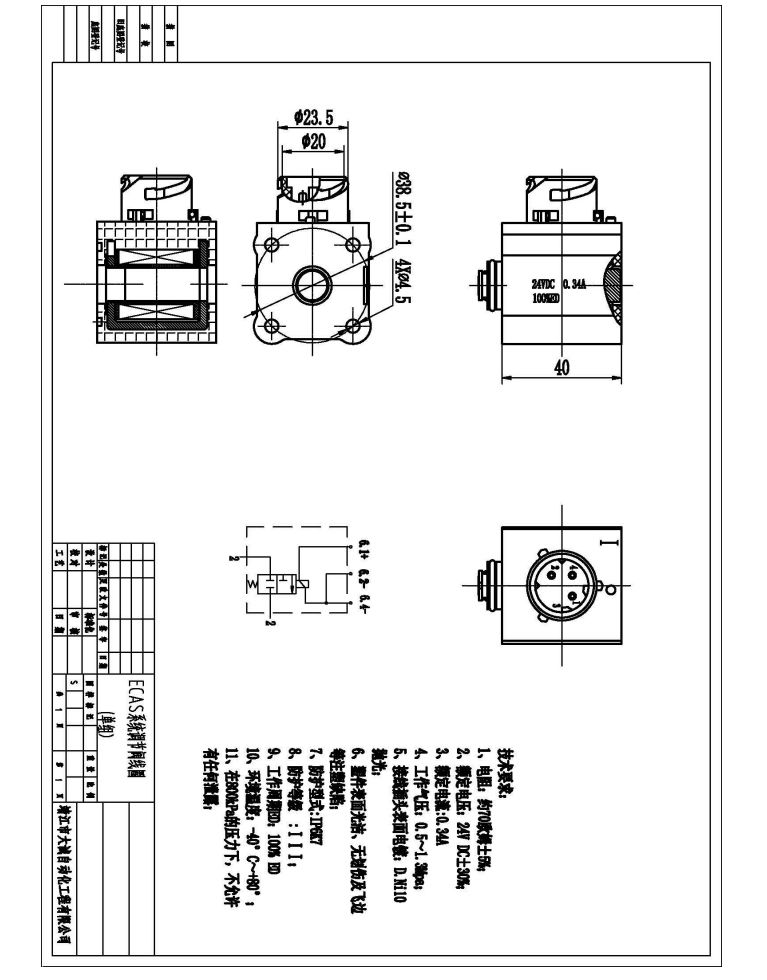

1.4 相关图纸
