1、 ABS introduction

1.1 what is ABS

ABS is the abbreviation of anti lock braking system, which is an electronic system to control and monitor the vehicle speed during braking. It works through the conventional braking system, and can improve the active safety of the vehicle. When ABS fails, the conventional brake system still works. ABS system mainly consists of ECU, ABS solenoid valve, wheel speed sensor and harness.

2.2 what are the advantages of ABS installation

In case of emergency braking, the maneuverability of vehicle direction is maintained; the braking distance is shortened and optimized. On the low adhesion road surface, the braking distance is shortened by more than 10%; on the normal road surface, the optimal utilization ratio of road adhesion coefficient - that is, the optimal braking distance is maintained. Reduced traffic accidents. Reduce the driver's mental burden. Reduced tire wear and maintenance costs.

2、 ABS solenoid valve

2.1 function of ABS solenoid valve

ABS solenoid valve is a main executive part of ABS system. It receives the electrical signal from ECU to charge, exhaust and maintain the pressure of brake chamber.

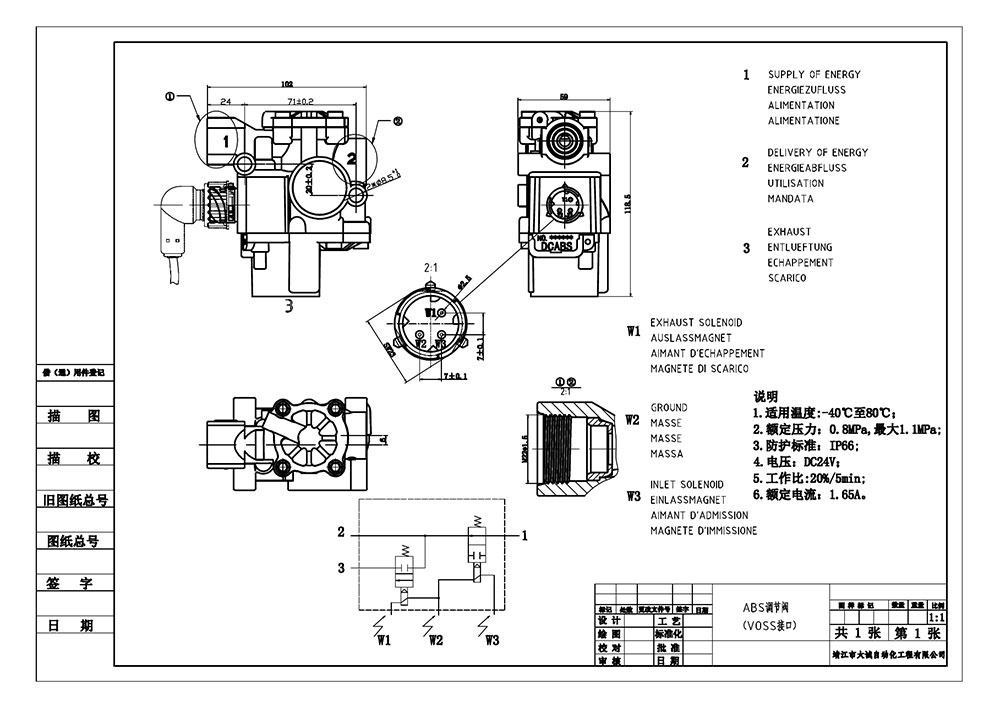

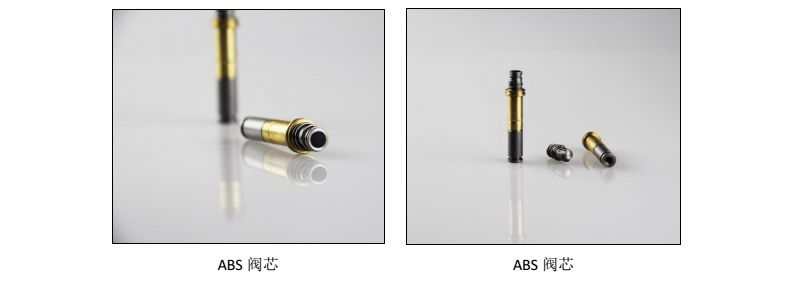

2.2 ABS solenoid valve of our company

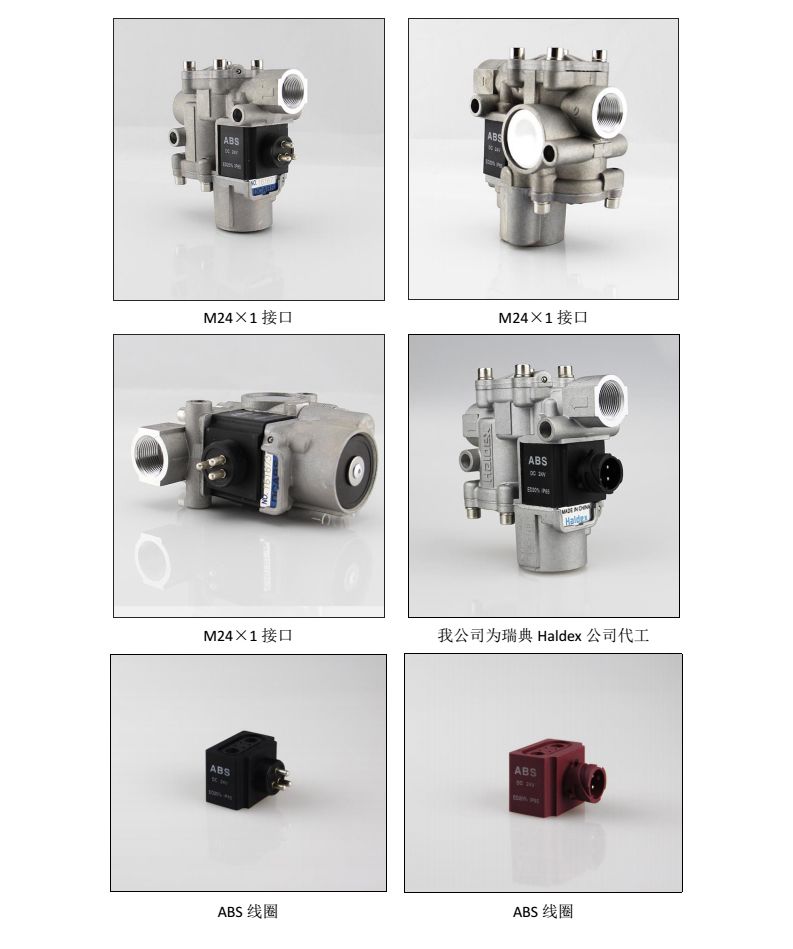

Our company began to produce ABS solenoid valve in 2002, which is one of the earliest manufacturers in China. After more than 10 years of continuous improvement and improvement, the performance of the products has reached or even exceeded the performance of similar products abroad. Our company's ABS solenoid valve has been supporting for Guangzhou Kemei brake, Ruili group, Wan'an group, Haldex of Sweden, boreck of Jiaozuo and other companies, with an annual output of more than 500000.

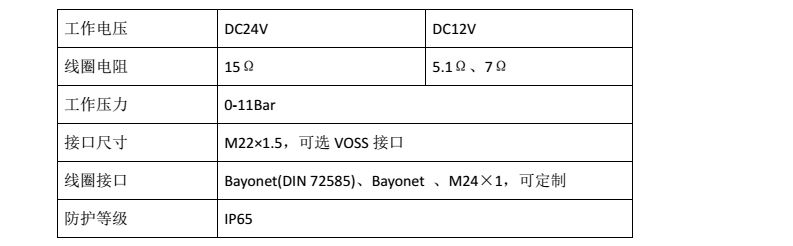

2.3主要参数

2.3ABS 电磁阀的工作原理

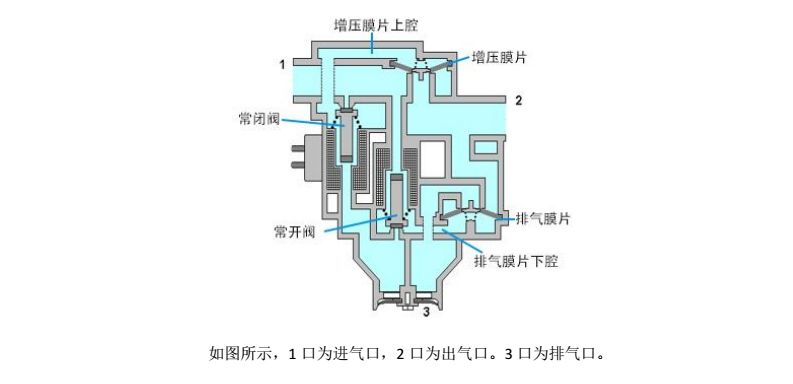

增压时，常闭阀及常开阀均不通电，气源直接从 1 口进入阀体，推开增压膜片，从2口进入制动气室。

保压时，常闭阀通电吸合，使气源到达增压膜片上腔，压紧增压膜片，同时另一路气源从常开阀到达排气膜片下腔，压紧排气膜片，达到保压的目的。

减压时，常闭阀通电吸合，使气源到达增压膜片上腔，压紧增压膜片，同时常开阀也通电吸合， 将排气膜片下腔的气通过 3 口排掉，这样制动气室的气就能通过 2口推开排气膜片，将制动室的气从 3口排出。

2.5 ABS电磁阀的安装

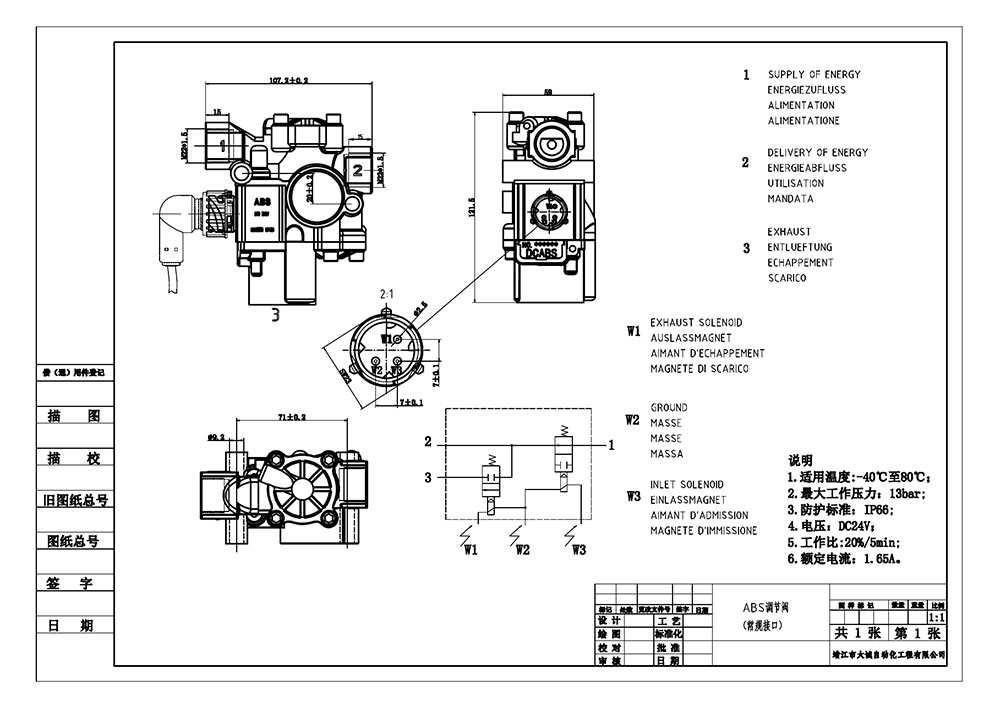

车架上靠近制动室的位置，排气口朝下。倾斜不超过30度，电磁阀到制动室的管子不超过 1.5m，管径大于 9mm，1口接进气，2口接制动室。

三、检测报告

3.1参考标准

《汽车防抱死系统气压电磁调节器 性能要求及台架试验方法》征求意见稿。

3.2综合性能测试

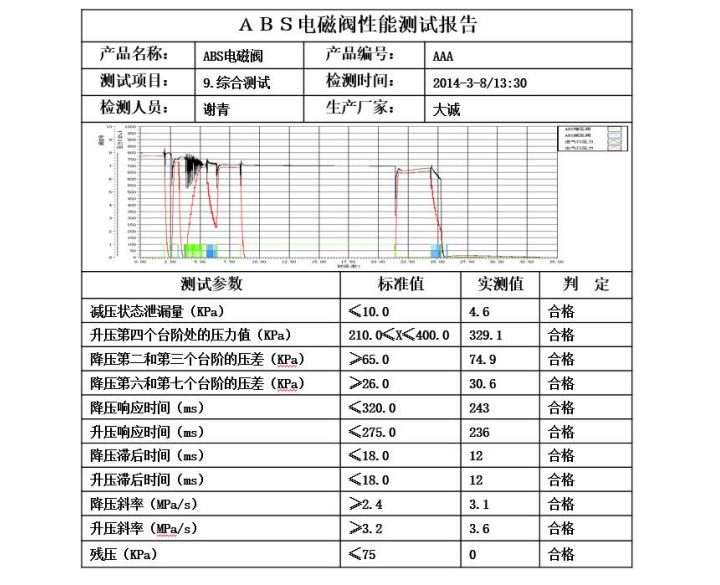

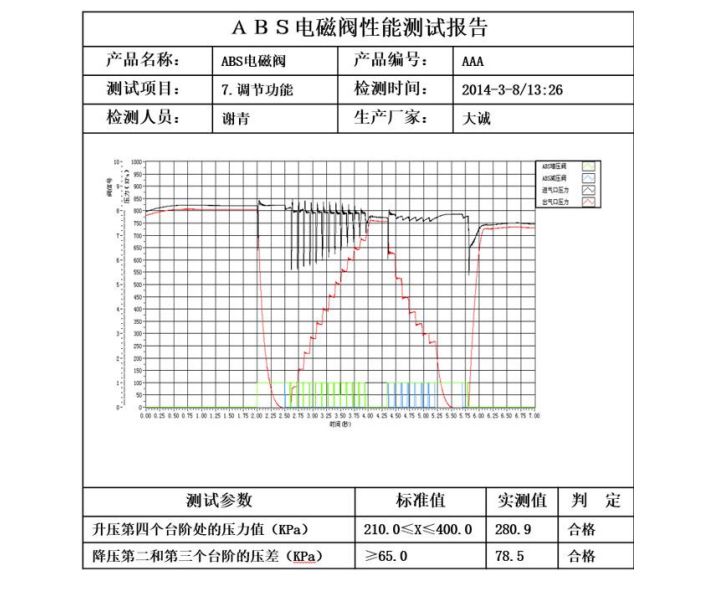

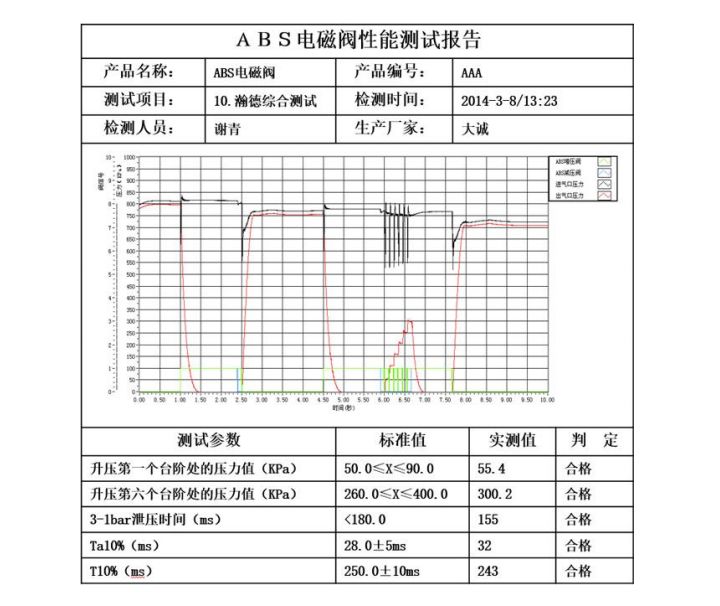

3.3调节性能测试报告

3.4综合试验
